4 to Tial v-band 1.25"sch10, short
search
  • 4 to Tial v-band 1.25"sch10, short

4 to Tial v-band 1.25"sch10, short

€240.00

The ultimate part for making exhaust manifolds for maximum performance. Featuring smooth transitions, and exact dimensions for the best flow possible. This translates into less back pressure, and means more power with the same boost, or the same power with lower boost (and less lag)!

Featuring the Tial vband with an OD of 76mm and a locating step OD of 54mm.

Quantity
Last items in stock



Return policy

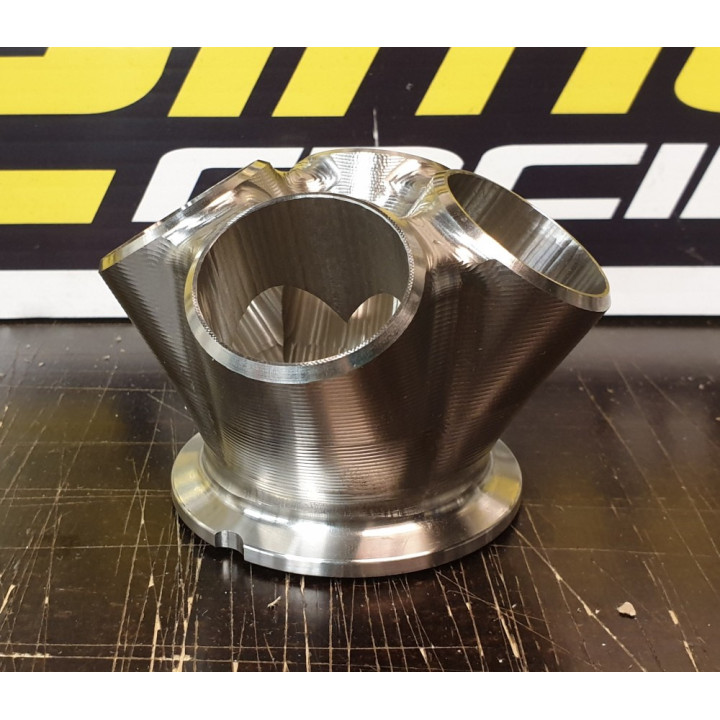

This CNC billet turbo collector features chamfered entry and wastegate pipes to make welding as simple as possible. This ready-to-weld part cuts hours or days off your exhaust manifold build time, and gives you a much better exhaust manifold!

This is the best CNC merge collector available on the market. CNC machined from a solid billet for maximum durability.

Please note: Tial's gt28/30/35 stainless v-band housings all use the same size v-band and will thus work with this collector.

This collector is particularly short, only 70.5mm total height.

erc4vt00-00
1 Item

Data sheet

Inlet pipe/tube size
1.25"sch10 (42.2/36.6mm)
Outlet flange
Tial gt28/30/35 vband
Wastegate size
none
