5 to Garrett v-band 1.25"sch40
  • 5 to Garrett v-band 1.25"sch40

5 to Garrett v-band 1.25"sch40

1-2 weeks

The ultimate part for making exhaust manifolds for maximum performance. Featuring smooth transitions, and exact dimensions for the best flow possible. This translates into less back pressure, and means more power with the same boost, or the same power with lower boost (and less lag)!

Please note: The Garrett v-band on this collector is not compatible with Tial stainless housings. The locating step on the collector has an outer diameter of 59.5mm to match the 60mm step in the suitable Garrett v-band housing. Compatible with the new G25 turbos among others.

Made to Order


Return policy

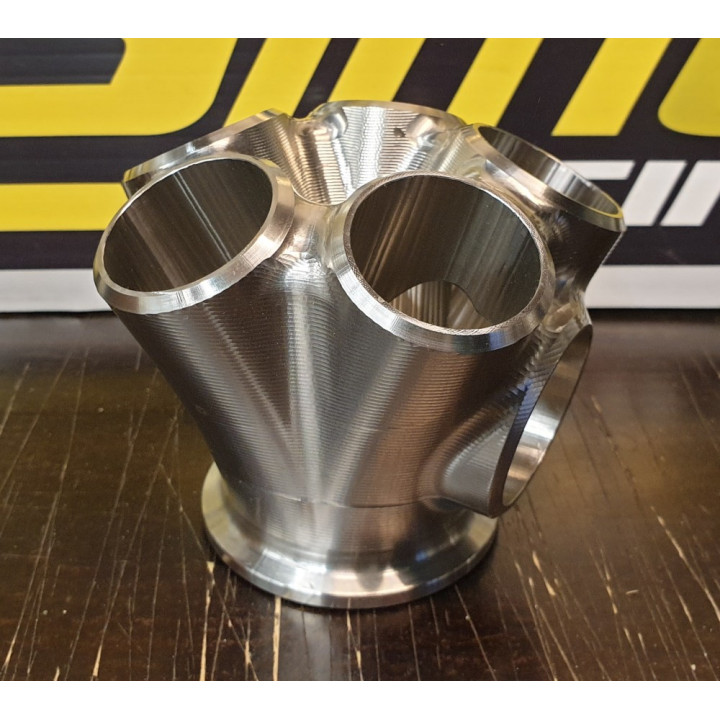

This CNC billet turbo collector features chamfered entry and wastegate pipes to make welding as simple as possible. This ready-to-weld part cuts hours or days off your exhaust manifold build time, and gives you a much better exhaust manifold!

This is the best CNC merge collector available on the market. CNC machined from a solid billet for maximum durability.


Data sheet

Inlet pipe/tube size
1.25"sch40 (42.2/35.1mm)
Outlet flange
Garrett G25/30/35
Wastegate size
1.5"sch40 (48.3/40.9mm)
